    MK55 Remote Control Drone Data Link Long Range Uav Data Link Customizable

    Ask Lasest Price
    Brand Name : GS
    Model Number : MK55
    Price : 1$,Negotiable
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 6-8
    • Product Details
    • Company Profile

    MK55 Remote Control Drone Data Link Long Range Uav Data Link Customizable

    MK55 Remote UAV Data Link Drone Image Transmission System
    Product Specifications
    AttributeValue
    Model numberMK22/55
    Air Size10cm * 6.3cm * 2.2cm / 150g
    Ground Size25.6cm * 25.6cm * 9.4cm / 1.9kg
    Operating frequency range800MHz/1.4GHz/2.4GHz
    Channel bandwidth5MHz/10MHz/20MHz
    Modulation modeOFDM
    Output powerMK22: 30dBm+1dB; MK55: 33dBm+1dB
    Sensitivity≤-92dBm
    Communication distanceMK22: 22km; MK55: 55km
    Air BitrateMax. 30Mbps
    Power supply rangeDC9-28V (Battery 3S~6S)
    Power consumption≤8.5W
    Operating temperature-40℃ to +70℃
    Storage temperature-40℃ to +85℃
    Key Features
    • Modular design for flexible configuration
    • Supports point-to-point networking
    • High-gain antenna for superior signal strength
    • Extended transmission distance up to 22KM/48KM
    • Ultra-low latency for real-time data transmission
    • Simultaneous multiple video transmission capability

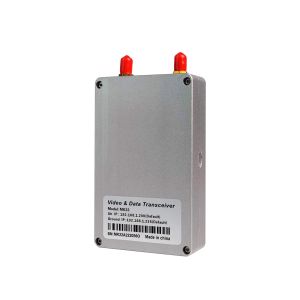

    MK55 UAV Data Link System showing compact design and antenna configuration
    Our Services
    1 Year Warranty included for all purchases
    14-day return policy for unsatisfied customers (contact required before return)
    Free replacement for defective items within 3 months
    Post-warranty replacement available (customer covers shipping)
    Close-up view of MK55 UAV Data Link System components and connectors
    Frequently Asked Questions
    Do you support OEM/ODM?
    Yes. We can print your logo on the product.
    About samples:
    Samples ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
    What is the delivery time?
    Regular orders ship within 15 days; OEM/ODM within 25-45 days (quantity dependent).
    What is the minimum order quantity?
    No MOQ for wholesale (1 piece accepted), including OEM/ODM.
    What are your payment terms?
    L/C or TT 100% payment accepted.
    Can you reduce the shipping cost?
    We always select the most economical shipping option available.
    Return policy:
    Replacements must be requested within 7 days of receipt. Items must be in original condition.
